Avrupa Standart Kanal Kirişler

Boyutlar:

HEA, HEB, HEM 100-1000: Eski EU 53-62 standardına uygun, HE 1000 ( GHE>GHEM ): ASTM A 6/A 6M - 07 standardına uygun, HE C: PN-H-93452: 2005 standardına uygun, HE AA 100-1000: AM standardında.

Tolerans Değerleri:

EN 10034: 1993 HE 100 - 900; HE 1000 AA-M ASTM A 6/A 6M - 07 HE 1000 ( GHE>GHEM )

Yüzey Durumu:

EN 10163-3: 2004 standardında sınıf C, alt sınıf 1

---

HEA – HEB – HEM Profil Ağırlıkları ve Ölçüleri

İsim	Ağırlık	Boyutlar

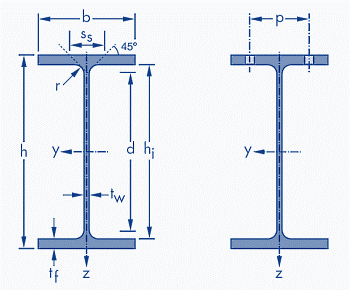

	G Ağırlık kg/m	h Derinlik mm	b Genişlik mm	tw Gövde Kalınlığı mm	tf Başlık Kalınlığı mm	r İç Köşe Yarıçapı mm	Tek Profil Ağırlığı kg/12.1 m	1 Ton Profil Boyu m/ton
HE 100 A	16,7	96	100	5,0	8,0	12,0	202	60
HE 120 A	19,9	114	120	5,0	8,0	12,0	241	50
HE 140 A	24,7	133	140	5,5	8,5	12,0	299	40
HE 160 A	30,4	152	160	6,0	9,0	15,0	368	33
HE 180 A	35,5	171	180	6,0	9,5	15,0	430	28
HE 200 A	42,3	190	200	6,5	10,0	18,0	512	24
HE 220 A	50,5	210	220	7,0	11,0	18,0	611	20
HE 240 A	60,3	230	240	7,5	12,0	21,0	730	17
HE 260 A	68,2	250	260	7,5	12,5	24,0	825	15
HE 280 A	76,4	270	280	8,0	13,0	24,0	924	13
HE 300 A	88,3	290	300	8,5	14,0	27,0	1.068	11
HE 320 A	97,6	310	300	9,0	15,5	27,0	1.181	10
HE 340 A	105,0	330	300	9,5	16,5	27,0	1.271	10
HE 360 A	112,0	350	300	10,0	17,5	27,0	1.355	9
HE 400 A	125,0	390	300	11,0	19,0	27,0	1.513	8
HE 450 A	140,0	440	300	11,5	21,0	27,0	1.694	7
HE 500 A	155,0	490	300	12,0	23,0	27,0	1.876	6
HE 550 A	166,0	540	300	12,5	24,0	27,0	2.009	6
HE 600 A	178,0	590	300	13,0	25,0	27,0	2.154	6
HE 650 A	190,0	640	300	13,5	26,0	27,0	2.299	5
HE 700 A	204,0	690	300	14,5	27,0	27,0	2.468	5
HE 800 A	224,0	790	300	15,0	28,0	30,0	2.710	4
HE 900 A	252,0	890	300	16,0	30,0	30,0	3.049	4
HE 1000 A	272,0	990	300	16,5	31,0	30,0	3.291	4
HE 100 B	20,4	100	100	6,0	10,0	12,0	247	49
HE 120 B	26,7	120	120	6,5	11,0	12,0	323	37
HE 140 B	33,7	140	140	7,0	12,0	12,0	408	30
HE 160 B	42,6	160	160	8,0	13,0	15,0	515	23
HE 180 B	51,2	180	180	8,5	14,0	15,0	620	20
HE 200 B	61,3	200	200	9,0	15,0	18,0	742	16
HE 220 B	71,5	220	220	9,5	16,0	18,0	865	14
HE 240 B	83,2	240	240	10,0	17,0	21,0	1.007	12
HE 260 B	93,0	260	260	10,0	17,5	24,0	1.125	11
HE 280 B	103,0	280	280	10,5	18,0	24,0	1.246	10
HE 300 B	117,0	300	300	11,0	19,0	27,0	1.416	9
HE 320 B	127,0	320	300	11,5	20,5	27,0	1.537	8
HE 340 B	134,0	340	300	12,0	21,5	27,0	1.621	7
HE 360 B	142,0	360	300	12,5	22,5	27,0	1.718	7
HE 400 B	155,0	400	300	13,5	24,0	27,0	1.876	6
HE 450 B	171,0	450	300	14,0	26,0	27,0	2.069	6
HE 500 B	187,0	500	300	14,5	28,0	27,0	2.263	5
HE 550 B	199,0	550	300	15,0	29,0	27,0	2.408	5
HE 600 B	212,0	600	300	15,5	30,0	27,0	2.565	5
HE 650 B	225,0	650	300	16,0	31,0	27,0	2.723	4
HE 700 B	241,0	700	300	17,0	32,0	27,0	2.916	4
HE 800 B	262,0	800	300	17,5	33,0	30,0	3.170	4
HE 900 B	291,0	900	300	18,5	35,0	30,0	3.521	3
HE 1000 B	314,0	1000	300	19,0	36,0	30,0	3.799	3
HE 100 M	41,8	120	106	12,0	20,0	12,0	506	24
HE 120 M	52,1	140	126	12,5	21,0	12,0	630	19
HE 140 M	63,2	160	146	13,0	22,0	12,0	765	16
HE 160 M	76,2	180	166	14,0	23,0	15,0	922	13
HE 180 M	88,9	200	186	14,5	24,0	15,0	1.076	11
HE 200 M	103,0	220	206	15,0	25,0	18,0	1.246	10
HE 220 M	117,0	240	226	15,5	26,0	18,0	1.416	9
HE 240 M	157,0	270	248	18,0	32,0	21,0	1.900	6
HE 260 M	172,0	290	268	18,0	32,5	24,0	2.081	6
HE 280 M	189,0	310	288	18,5	33,0	24,0	2.287	5
HE 300 M	238,0	340	310	21,0	39,0	27,0	2.880	4
HE 320 M	245,0	359	309	21,0	40,0	27,0	2.965	4
HE 340 M	248,0	377	309	21,0	40,0	27,0	3.001	4
HE 360 M	250,0	395	308	21,0	40,0	27,0	3.025	4
HE 400 M	256,0	432	307	21,0	40,0	27,0	3.098	4
HE 450 M	263,0	478	307	21,0	40,0	27,0	3.182	4
HE 500 M	270,0	524	306	21,0	40,0	27,0	3.267	4
HE 550 M	278,0	572	306	21,0	40,0	27,0	3.364	4
HE 600 M	285,0	620	305	21,0	40,0	27,0	3.449	4
HE 650 M	293,0	668	305	21,0	40,0	27,0	3.545	3
HE 700 M	301,0	716	304	21,0	40,0	27,0	3.642	3
HE 800 M	317,0	814	303	21,0	40,0	30,0	3.836	3
HE 900 M	333,0	910	302	21,0	40,0	30,0	4.029	3
HE 1000 M	349,0	1008	302	21,0	40,0	30,0	4.223	3
