Avrupa Standart Kanal Kirişler

Boyutlar:

DIN 1026-1: 2000, NF A 45-202: 1986

Tolerans Değerleri:

EN 10279: 2000

Yüzey Durumu:

EN 10163-3: 2004 Standardına uygun olarak sınıfı C, alt sınıf 1

---

UPN Profil Ağırlıkları ve Ölçüleri

İsim	Ağırlık	Boyutlar

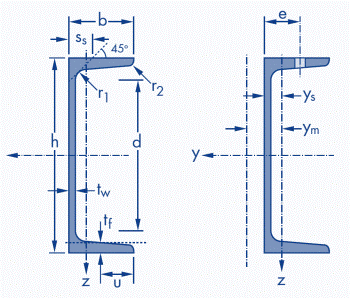

	G Ağırlık kg/m	h Derinlik mm	b Genişlik mm	tw Gövde Kanlınlığı mm	tf Başlık Kalınlığı	r1 İç Köşe Yarıçapı mm	r2 İç Köşe Yarıçapı mm	Tek Profil Ağırlığı kg/12.1m	1 Ton Profil Boyu m/ton
U 40x20*	2,87	40	20	5,0	5,5	5,0	2,5	35	348
U 50x25*	3,86	50	25	5,0	6,0	6,0	3,0	47	259
U 60x35*	5,07	60	30	6,0	6,0	6,0	3,0	61	197
UPN 65*	7,09	65	42	5,5	7,5	7,5	4,0	86	141
UPN 80*	8,65	80	45	6,0	8,0	8,0	4,0	105	116
UPN 100*	10,60	100	50	6,0	8,5	8,5	4,5	128	94
UPN 120	13,40	120	55	7,0	9,0	9,0	4,5	162	75
UPN 140	16,00	140	60	7,0	10,0	10,0	5,0	194	63
UPN 160	18,80	160	65	7,5	10,5	10,5	5,5	227	53
UPN 180	22,00	180	70	8,0	11,0	12,0	5,5	266	45
UPN 200	25,30	200	75	8,5	11,5	11,5	6,0	306	40
UPN 220	29,40	220	80	9,0	12,5	12,5	6,5	356	34
UPN 240	33,20	240	85	9,5	13,0	13,0	6,5	402	30
UPN 260	37,90	260	90	10,0	14,0	14,0	7,0	459	26
UPN 280	41,80	280	95	10,0	15,0	15,0	7,5	506	24
UPN 300	46,20	300	100	10,0	16,0	16,0	8,0	559	22
UPN 320*	59,50	320	100	14,0	17,5	17,5	8,8	720	17
UPN 350	60,60	350	100	14,0	16,0	16,0	8,0	733	17
UPN 380*	63,10	380	102	13,5	16,0	16,0	8,0	764	16
UPN 400*	71,80	400	110	14,0	18,0	18,0	9,0	869	14
