Eşit Kenar Köşebentler
Boyutlar:
EN 10056-1: 1998
Tolerans Değerleri:
EN 10056-2: 1994
Yüzey Durumu:
EN 10163-3: 2004 standartına göre sınıfı C, alt sınıfı 1

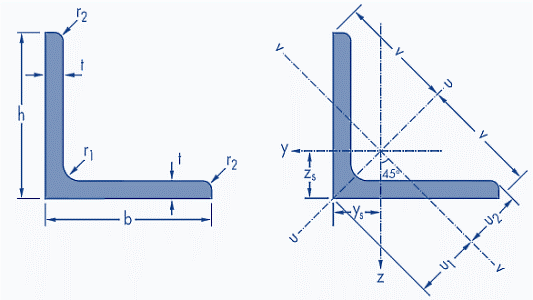

L Eşkenar Köşebent Ağırlık Tablosu
| Ürün | h = b | t Kalınlık | Ağırlık kg/m | |
|---|---|---|---|---|
| 20x20 | 20 | 3 | 0,88 | |
| 20x20 | 20 | 4 | 1,14 | |
| 25x25 | 25 | 3 | 1,12 | |
| 25x25 | 25 | 4 | 1,45 | |
| 25x25 | 25 | 5 | 1,77 | |
| 30x30 | 30 | 3 | 1,36 | |
| 30x30 | 30 | 4 | 1,76 | |
| 30x30 | 30 | 5 | 2,18 | |
| 35x35 | 35 | 3 | 1,60 | |
| 35x35 | 35 | 4 | 2,09 | |
| 35x35 | 35 | 4 | 2,57 | |
| 40x40 | 40 | 3 | 1,84 | |
| 40x40 | 40 | 4 | 2,42 | |
| 40x40 | 40 | 5 | 2,97 | |
| 40x40 | 40 | 6 | 3,52 | |
| 45x45 | 45 | 3 | 2,09 | |
| 45x45 | 45 | 4 | 2,74 | |
| 45x45 | 45 | 5 | 3,38 | |
| 45x45 | 45 | 6 | 4,00 | |
| 50x50 | 50 | 3 | 2,33 | |
| 50x50 | 50 | 4 | 3,06 | |
| 50x50 | 50 | 5 | 3,77 | |
| 50x50 | 50 | 6 | 4,47 | |
| 55x55 | 55 | 5 | 4,18 | |
| 55x55 | 55 | 6 | 4,95 | |
| 55x55 | 55 | 7 | 5,71 | |
| 60x60 | 60 | 4 | 3,70 | |
| 60x60 | 60 | 5 | 4,57 | |
| 60x60 | 60 | 6 | 5,42 | |
| 60x60 | 60 | 7 | 6,26 | |
| 65x65 | 65 | 5 | 4,98 | |
| 65x65 | 65 | 6 | 5,91 | |
| 65x65 | 65 | 7 | 6,83 | |
| 65x65 | 65 | 8 | 7,73 | |
| 65x65 | 65 | 9 | 8,62 | |
| 70x70 | 70 | 5 | 5,37 | |
| 70x70 | 70 | 6 | 6,38 | |
| 70x70 | 70 | 7 | 7,38 | |
| 70x70 | 70 | 8 | 8,36 | |
| 70x70 | 70 | 9 | 9,37 | |
| 70x70 | 70 | 11 | 11,20 | |
| 75x75 | 75 | 5 | 5,78 | |
| 75x75 | 75 | 6 | 6,87 | |
| 75x75 | 75 | 7 | 7,94 | |
| 75x75 | 75 | 8 | 9,03 | |
| 75x75 | 75 | 10 | 11,10 | |
| 75x75 | 75 | 12 | 13,10 | |
| 80x80 | 80 | 6 | 7,34 | |
| 80x80 | 80 | 7 | 8,49 | |
| 80x80 | 80 | 8 | 9,63 | |
| 80x80 | 80 | 9 | 10,80 | |
| 80x80 | 80 | 10 | 11,90 | |
| 80x80 | 80 | 12 | 14,10 | |
| 90x90 | 90 | 6 | 8,30 | |
| 90x90 | 90 | 8 | 10,90 | |
| 90x90 | 90 | 9 | 12,20 | |
| 90x90 | 90 | 10 | 13,40 | |
| 90x90 | 90 | 11 | 14,70 | |
| 90x90 | 90 | 13 | 17,10 | |
| 100x100 | 100 | 6 | 9,90 | |
| 100x100 | 100 | 7 | 10,80 | |
| 100x100 | 100 | 8 | 12,20 | |
| 100x100 | 100 | 10 | 15,00 | |
| 100x100 | 100 | 12 | 17,80 | |
| 100x100 | 100 | 14 | 20,60 | |
| 100x100 | 100 | 15 | 21,90 | |
| 100x100 | 100 | 16 | 23,20 | |
| 100x100 | 100 | 20 | 28,40 | |
| 110x110 | 110 | 10 | 16,60 | |
| 110x110 | 110 | 12 | 19,70 | |
| 110x110 | 110 | 14 | 22,80 | |
| 120x120 | 120 | 8 | 14,70 | |
| 120x120 | 120 | 10 | 18,20 | |
| 120x120 | 120 | 11 | 19,90 | |
| 120x120 | 120 | 12 | 21,60 | |
| 120x120 | 120 | 13 | 23,30 | |
| 120x120 | 120 | 15 | 26,60 | |
| 130x130 | 130 | 12 | 23,60 | |
| 130x130 | 130 | 14 | 27,20 | |
| 130x130 | 130 | 16 | 30,80 | |
| 140x140 | 140 | 13 | 27,50 | |
| 140x140 | 140 | 15 | 31,40 | |
| 140x140 | 140 | 17 | 35,30 | |
| 150x150 | 150 | 12 | 27,30 | |
| 150x150 | 150 | 14 | 31,60 | |
| 150x150 | 150 | 15 | 33,80 | |
| 150x150 | 150 | 16 | 35,90 | |
| 150x150 | 150 | 18 | 40,10 | |
| 160x160 | 160 | 15 | 36,20 | |
| 160x160 | 160 | 17 | 40,70 | |
| 180x180 | 180 | 16 | 43,50 | |
| 180x180 | 180 | 18 | 48,60 | |
| 180x180 | 180 | 20 | 53,70 | |
| 180x180 | 180 | 22 | 58,60 | |
| 200x200 | 200 | 16 | 48,50 | |
| 200x200 | 200 | 18 | 54,30 | |
| 200x200 | 200 | 20 | 59,90 | |
| 200x200 | 200 | 24 | 71,10 | |
| 200x200 | 200 | 28 | 82,00 | |
| 250x250 | 250 | 20 | 75,30 | |
| 250x250 | 250 | 22 | 82,50 | |
| 250x250 | 250 | 24 | 89,70 | |
| 250x250 | 250 | 25 | 92,20 | |
| 250x250 | 250 | 26 | 96,70 | |
| 250x250 | 250 | 27 | 101,00 | |
| 250x250 | 250 | 28 | 104,00 | |
